Synthesizer module: installation and test

Cabeling

• Connect your 10MHz signal to the backside 5/10MHz pin

Test procedure

• Power on the clock module.

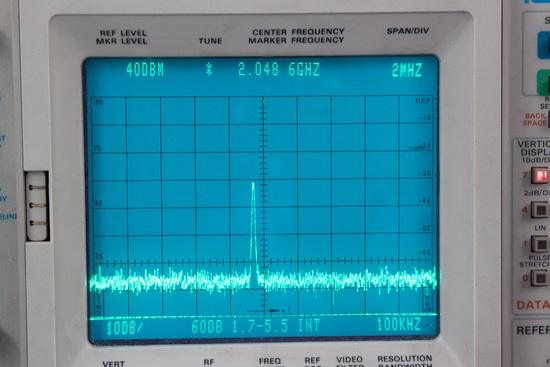

• Connect one of the frontside pins labeled 0-3 to a spectrum analyzer. Verify that you see a line that is peaking at 2048 MHz.

• Check the peak power level. The frontside pins labeled 0-3 provide the clock with decreasing power levels. Select the pin that gives a power level in the targeted range (0 to -3dBm)
• Connect the selected pin with the "clk" pin on the frontside of the R2DBE.

Open questions

• What is the procedure if only 5MHz is available at a station?
• Is the 0 to -3dBm power level correct? (Only took this number from private com.)
